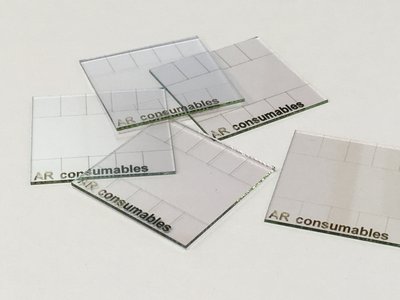

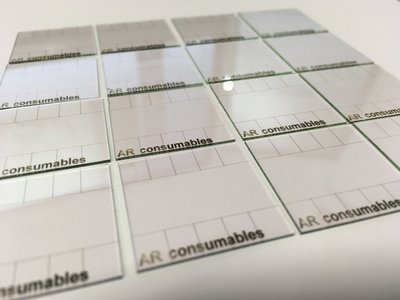

Laser Patterned ITO and FTO Substrates

  • High quality substrates for optoelectronic applications, i.e.
    • Liquid Crystal Displays (LCD) technology
    • Organic Light Emitting Diodes (OLED)
    • Organic Photovoltaics (OPV)
    • Perovskite Solar Cells
    • General Electrochemistry
    • Flat Antennas for Mobile Communictaion
    • Conducting glass/Transparent electrodes
  • Customized pattern

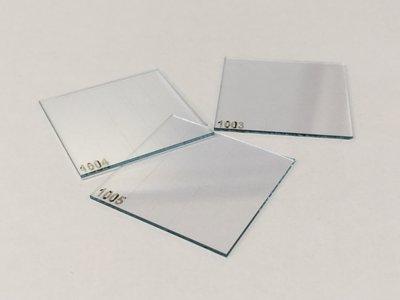

  • ITO- or FTO-coated glass
  • Laser structured conductive layers with highest precision
  • Substrate size up to 200×200 mm²
Download Data Sheet

Transparent, conductive coatings on glass

  • Electrical conductivity and optical
    transparency
  • Homogeneously flat ITO/FTO coatings
  • Low roughness
  • Uniform transmission

General ITO glass properties

  • OLED grade, polished, very low roughness,
    high transmission
  • Standard conductivity range 7-20 Ohm/sq
  • Glass thickness 0.7-1.1 mm

Laser cut properties

Typically 10-20 μm width, no shunts,
no spikes, no debris





General FTO glass properties

  • Low roughness
  • Standard conductivity range: 7-13 Ohm/sq
  • Glass thickness 1.8-3 mm
  • >80% transmission

Confocal microscope image of laser cut in ITO (ca. 150 nm)
Confocal microscope image of laser cut in ITO (ca. 150 nm)
Profile of confocal microscope image
Profile of confocal microscope image
Atomic Force Microscopy (AFM) image of a laser cut in ITO (150 nm)
